Invisible double panels cm 80×130

617,00 including VAT and transport

617 € including VAT and transport

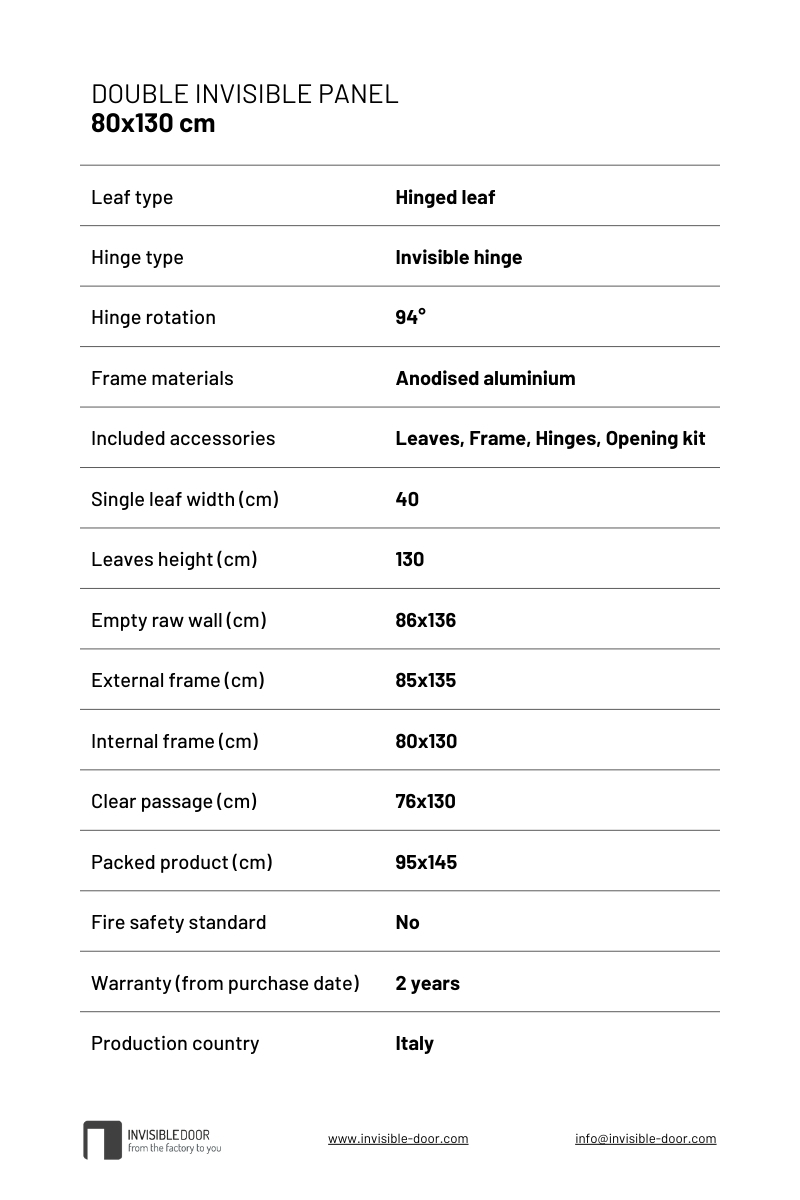

Technical Specifications

  • Satin aluminium frame ready for installation in any type of wall, pre-assembled in the factory and therefore ready for installation, our frame only needs grouting on the outside (on 4 sides) after fixing to the wall, so it is not necessary when building the wall or plasterboard;


  • Solid mdf doors with a thickness of 19 mm, already treated with a protective primer (cementite/primer) over the entire surface, the doors arrive ready to be painted with the same paint as the walls or to be covered with wallpaper;


  • Hinges adjustable on 3 axes “spring-loaded” with automatic push out of door (right-hand door) (included with push-open mechanism) or “spring-loaded” with locking when closing (included with fixed minimal knobs);


  • High-quality push-to-open mechanism included and pre-installed in the centre of the door (right), or fixed ergonomic minimalist knobs pre-installed at the factory in the centre of the doors (one on each door), depending on choice;


  • Hydraulic pistons suitable and necessary for opening the sash upwards, the upward opening is ‘controlled’ by the pistons themselves. The pistons are pre-installed inside the frame at the factory;


  • Measurements of the compartment to be made (masonry, plasterboard, concrete) cm 86 x 136 H;


  • External-frame dimensions (the frame is 4-sided and includes the dust seal) cm 85 x 135 H;


  • Internal-frame dimensions (inside frame span with installation above finished floor) cm 80 x 130 H ;


  • Door dimensions (+/-) cm 40 x 130 H ;


  • Real-passage measure when the doors is open (+/-) cm 76 x 130 H;


  • This product is ideal for closing off manifold niches, electrical panels, accesses for counter-ceiling storage for duvets and/or suitcases, concealed pockets in the entrance hall, small pantries in the kitchen, living room or bedrooms;


  • Installation is very easy for bricklayers, drywallers or craftsmen who install fixtures; we recommend DIY only for customers who have experience with plasterboard wall plastering and gauzing;


  • Preparing the compartment (in masonry, plasterboard, concrete) will allow you to get on with the work, and to wait for the arrival of the flush door with peace of mind, just respect the measurements of the ‘compartment to be made’ given above;


  • Please note that a depth of 9 cm is required for installation;

Delivery Times

  • Selected EU-Countries Delivery (by telephone-appointment) included in the price, check the delivery time HERE you will find more information on delivery;


  • EU-Business-price Available! Please:
    -Add the product to the basket and go to the checkout.
    -Complete the form please and have a look to the 0%-VAT price after the 30-seconds VIES verification is done.
    -You’ll be able to decide to confirm the order or not after the VAT verification.

SKU: IDP80X130 Categories: ,


The invisible Invisible-door access panel enables to close recesses and technical spaces keeping a seamless continuity between wall and shutter, thanks to a perfectly integrated frame with both masonry and plasterboard and to the use of rollaway adjustable hinges. The MDF shutter can be processed according to the client or designer’s requirements, allowing to stylishly hide technical elements or to transform recesses into storage compartments perfectly integrated with the wall.

Technical features and details

The single Invisible-door frame perfectly integrates with masonry and plasterboard walls. The press-drawn section is in anodised aluminium, alloy 6060, and satin silver finished. It is supplied with a dust brush on the sides of the door slam. The mdf 19 mm thick panel is pre installed on the frame and, supplied, at your choice, with push-pull opening system to avoid any handle, or with a magnetic lock provided with a knob. Adjustable hinges come standard on INVISIBLE-DOOR doors and access panels enabling to keep doors perfectly aligned thanks to easy adjustment of proper regulators.

Invisible double panels cm 80×130

Additional information

Weight 0,16 kg
Lock option

Push-pull (no handle), Fixed Knob


Plasterboard, Masonry

Delivery times

9 weeks (included in the price), 11/13 weeks (included in the price)
