Invisible quadruple panels cm 220×40

957,00€ including VAT and transport

957 € including VAT and transport

Technical Specifications

  • Satin-finish aluminum frame ready for installation in any type of wall (plasterboard or masonry or concrete, no worries! ), pre-assembled in the factory and therefore ready for installation, our frame only needs to be plastered on the outside (on 4 sides) after fixing to the wall with expanding foam (the same foam we use to fix windows and patio-doors, so there’s no need to do any “masonry work” or wait for the frames to arrive to build the walls around the frame (just respect the size/measurement of the “wall void” we write below in the description);
  • Solid mdf doors with a thickness of 19 mm, already treated with a protective primer (cementite/primer) over the entire surface, the doors arrive ready to be painted with the same paint as the walls or to be covered with wallpaper;
  • Adjustable hinges on 3 axes. Spring-loaded hinges with push-pull or stop-closed hinges with minimalist fixed knob;
  • High-quality push-pull mechanism included and pre-installed in the center of the door, or minimalist ergonomic fixed knob pre-installed in the center of the door (depending on choice);

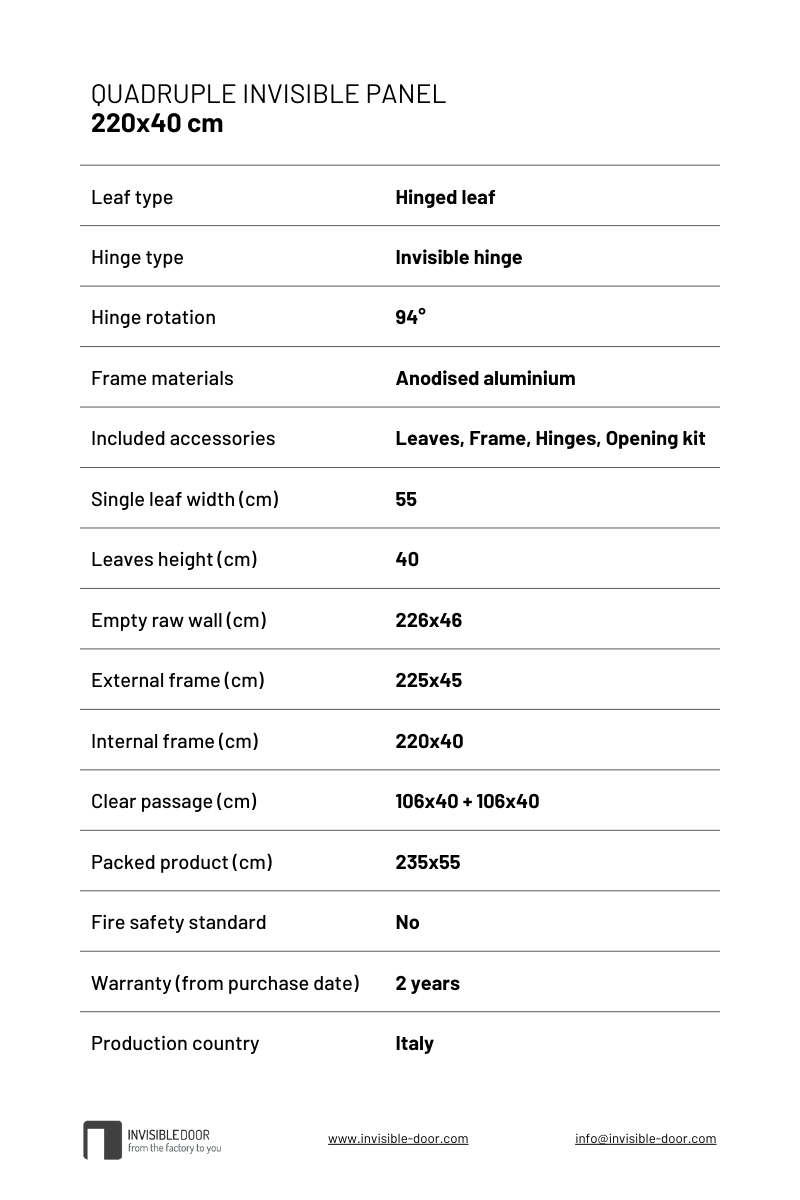

Measures

  • Measurements of the compartment to be made (masonry, plasterboard, concrete) cm 226 x 46 H;
  • External-frame dimensions (the frame is 4-sided and includes the dust seal) cm 225 x 45 H;
  • Internal-frame dimensions cm 220 x 40 H ;
  • Door dimensions (+/-) cm 55 x 40 H ;
  • Real-passage measure when the doors is open (+/-) cm 106 + 106 x 40 H;

Installation

  • This product is ideal for closing multiple niches, electrical access panels, false ceiling accesses for storing comforters and/or suitcases, concealed cubbyholes in entrance halls, small pantries in kitchens, niches/cupboards in living rooms or bedrooms;
  • Installation is very easy for bricklayers, plasterers or craftsmen who have experience with plasterboard walls. We recommend DIY only for customers who have experience in plastering and “gauging” plasterboard walls;
  • Preparing the compartment (masonry, plasterboard, concrete) will allow you to continue the work and await the arrival of your panel-invisible-flush with peace of mind. All you have to do is respect the “wall void” measurements indicated above;
  • Please note that a depth (wall thickness) of 9 cm is required for the installation of aluminum frames, the leaf is always comprsi within this 9 cm;

Delivery Times

  • Selected EU-Countries Delivery (by telephone-appointment) included in the price, check the delivery time HERE you will find more information on delivery;
  • EU-Business-price Available! Please:
    -Add the product to the basket and go to the checkout.
    -Complete the form please and have a look to the 0%-VAT price after the 30-seconds VIES verification is done.
    -You’ll be able to decide to confirm the order or not after the VAT verification.

SKU: IQP220X40 Categories: ,

Description

The invisible Invisible-door access panel enables to close recesses and technical spaces keeping a seamless continuity between wall and shutter, thanks to a perfectly integrated frame with both masonry and plasterboard and to the use of rollaway adjustable hinges. The MDF shutter can be processed according to the client or designer’s requirements, allowing to stylishly hide technical elements or to transform recesses into storage compartments perfectly integrated with the wall.

Technical features and details

The single Invisible-door frame perfectly integrates with masonry and plasterboard walls. The press-drawn section is in anodised aluminium, alloy 6060, and satin silver finished. It is supplied with a dust brush on the sides of the door slam. The mdf 19 mm thick panel is pre installed on the frame and, supplied, at your choice, with push-pull opening system to avoid any handle, or with a magnetic lock provided with a knob. Adjustable hinges come standard on INVISIBLE-DOOR doors and access panels enabling to keep doors perfectly aligned thanks to easy adjustment of proper regulators.

Invisible quadruple panels cm 220×40

Additional information

Weight 0,16 kg
Lock option

Push-pull (no handle), Fixed Knob
Wall

Plasterboard, Masonry
Delivery times

9 weeks (included in the price), 11/13 weeks (included in the price)
